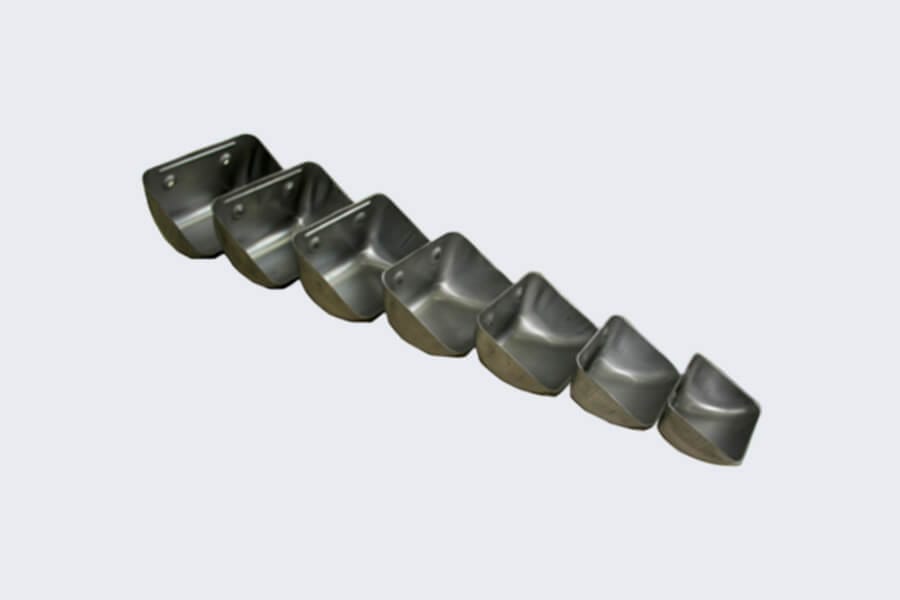

Metal Elevator Buckets

icon 01

Features and Benefits:

  • Metal elevator buckets are produced from steel.
  • Strong and long lasting.
  • Dome washers are used with metal elevator buckets.

Options:

    • The distance between the bolt holes can be changed.
    • There are different sizes as shown in the chart.
    • Can be shipped with nylon nuts.

</ul

Packaging:

      • Can be shipped with carton boxes or in sacks.

Applications:

      • Elevator buckets are used over vertical elevators.

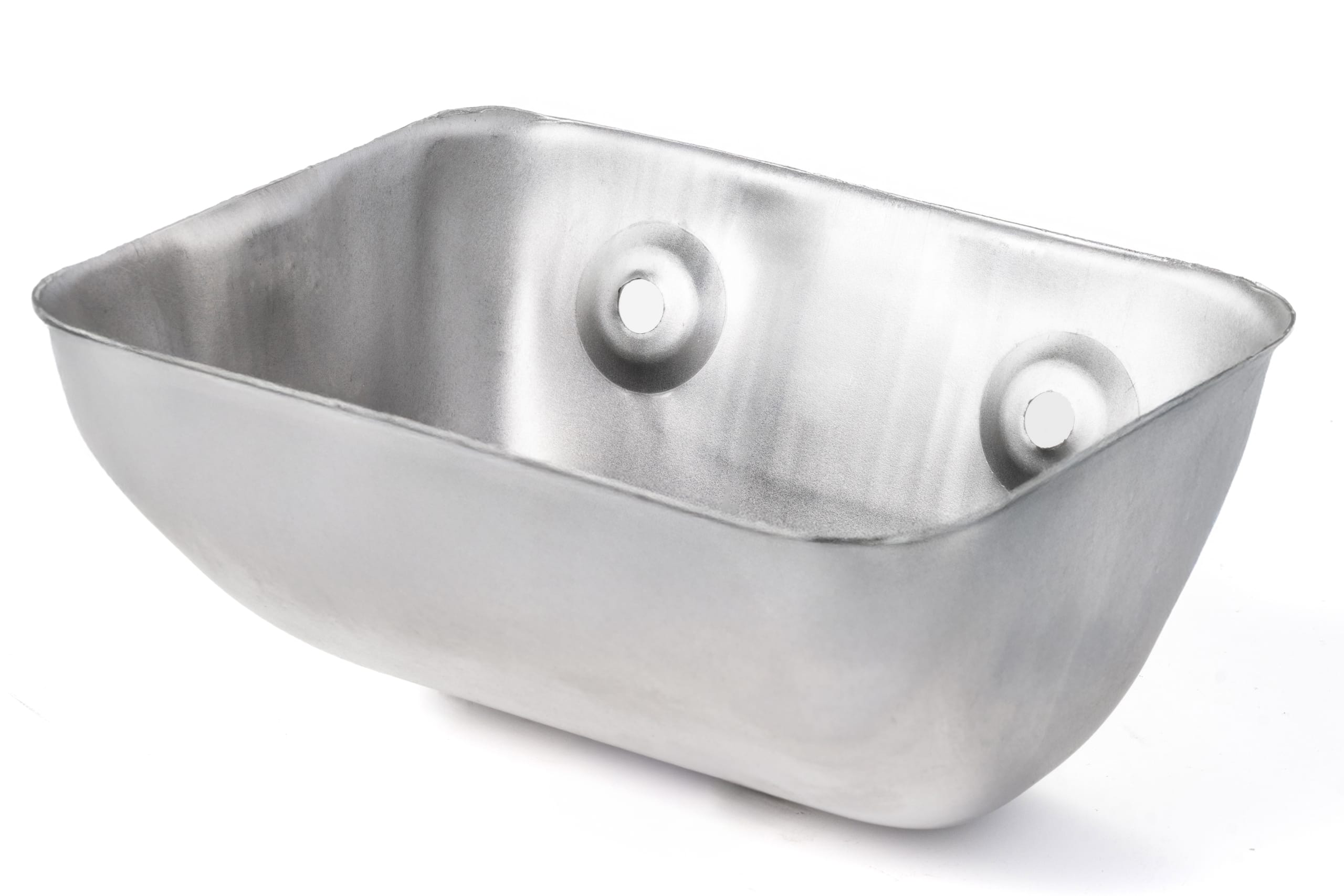

Metal Elevator Buckets
Metal Elevator Buckets Selection Chart
Product Code A- Width B- Length C- Depth D-Thickness E- Distance Between Bolt Holes F- Number Of Holes G Ø- Size Of Bolts Carrying Capacity
KK-SKO1 90 mm 80 mm 45 mm 1 mm 40 mm 2 8 mm-5/16” 0.144 lt / 0.132 kg
KK-SKO2 100 mm 90 mm 55 mm 1 mm 50 mm 2 8 mm-5/16” 0.242 lt / 0.218 kg
KK-SKO3 120 mm 105 mm 65 mm 1 mm 60 mm 2 8 mm-5/16” 0.382 lt / 0.344 kg
KK-SKO4 140 mm 120 mm 75 mm 1 mm 70 mm 2 8 mm-5/16” 0.581 lt / 0.522 kg
KK-SKO5 160 mm 130 mm 85 mm 1.2 mm 80 mm 2 8 mm-5/16” 0.775 lt / 0.698 kg
KK-SKO6 180 mm 140 mm 96 mm 1.2 mm 90 mm 2 8 mm-5/16” 1.006 lt / 0.906 kg
KK-SKO7 200 mm 150 mm 107 mm 1.5 mm 100 mm 2 8 mm-5/16” 1.588 lt / 1.432 kg
KK-SKO8 220 mm 162 mm 118 mm 1.5 mm 110 mm 2 8 mm-5/16” 2.101 lt / 1.892 kg
KK-SKO9 240 mm 175 mm 130 mm 1.5 mm 120 mm 2 8 mm-5/16” 2.505 lt / 2.252 kg
KK-SK11 260 mm 180 mm 140 mm 1.5 mm 160 mm 3 10 mm-3/8” 3.455 lt / 3.088 kg
KK-SK12 280 mm 213 mm 170 mm 1.5 mm 180 mm 3 10 mm-3/8” 4.221 lt / 3.651 kg
KK-SK13 320 mm 220 mm 150 mm 1.5 mm 200 mm 3 10 mm-3/8” 6.251 lt / 4.474 kg
