Rubber Splice

Rubber Splice is a strong and flexible splice which is a composition of rubber structure, with strong textile plies and metal inserts, which allows installation with steel screws. There are different types of rubber splice for different uses like Abresion Resistant (AR), Heat Resistant (HR) 150 °C, High Temp. Resistant (HTR), Cold Resistant (LTR), Oil and Grease Resistant (OR), Oil and MOR Resistant, Fire Resistant (FR).

  • Quick and easy installation
  • No need for power on site to install(lithium batery needed)
  • No need for expensive equipment
  • Special self-taping screw: Aviod damaging the carcass
  • The carcass’s structure is similar to that of the conveyor belt, but stronger.
  • The splicing have good flexibility
  • Abresion Resistant (AR): Suitable for most abrasion and general use occasions DIN abrasion index: ≤90 mm3
  • Heat Resistant (HR): Suitable for conveying materials up to 150 °C, such as pellets, sinkers and clinker
  • Hight Temperature Resistant (HTR): Suitable for conveying materials up to 200 °C, such as pellets, sinkers and clinker
  • Low Temperature Resistant (LTR): Suitable for material transportation in cold environment, cold resistant temperature ≥-45 °C
  • Oil Resistant (OR): Suitable for conveying oily materials such as wood, oil and urban solid waste
  • Fire Resistant (FR): Suitable for material transportation under environments such as power plants, coal mines and underground mines

Rubber Splice Selection Chart

Image Technical DetailsPackaging
Fastener CodeConveyor Belt ThicknessNominal StrengthMax. Working TensionMin. Roller Diameter Popular Conveyor Belt Box Content Box Weight Box Dimensions
Rubber Splice KR35-ARKR35-AR4 – 11 mm315 N/mm35 N/mm160/200 mmEP400, EP31525 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

26,6 kg

46x46x13 cm

37x31x9 cm

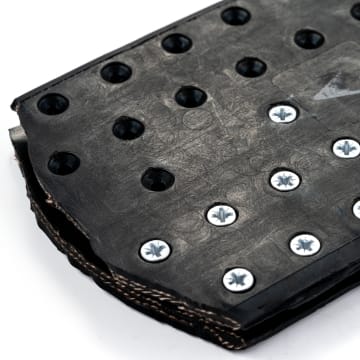

Rubber Splice KR63-ARKR63-AR4-13 mm630 N/mm63 N/mm220/300 mmEP500, EP63025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

49,7 kg

46x46x13 cm

37x31x9 cm

Rubber Splice KR65-ARKR65-AR4-13 mm630 N/mm63 N/mm250/300 mmEP500, EP63025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

51,0 kg

46x46x13 cm

37x31x9 cm

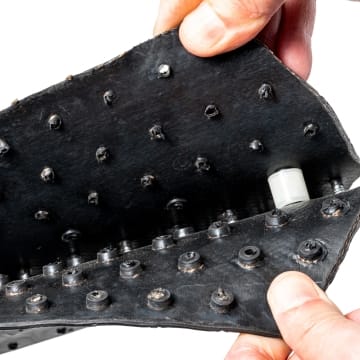

Rubber Splice KR80-ARKR80-AR4-15 mm800 N/mm80 N/mm250/350 mmEP80025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

96,3 kg

58×58×18 cm

37x31x9 cm

Rubber Splice KR85-ARKR85-AR5-15 mm800 N/mm80 N/mm270-400 mmEP80025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

96,3 kg

58×58×18 cm

37x31x9 cm

Rubber Splice KR100-ARKR100-AR6-15 mm1000 N/mm100 N/mm300-350 mmEP100025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

100,8 kg

58×58×18 cm

37x31x9 cm

Rubber Splice KR105-ARKR105-AR6-15 mm1000 N/mm100 N/mm350-400 mmEP100025 m Upper Part
25 m Bottom Part
Screws
Spacers
PZ Bits

117 kg

58×58×18 cm

37x31x9 cm

Rubber Splice KR125-ARKR125-AR7-20,5 mm1250 N/mm125 N/mm350-400 mmEP125015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

103 kg

68×68×28 Cm

37x31x9 cm

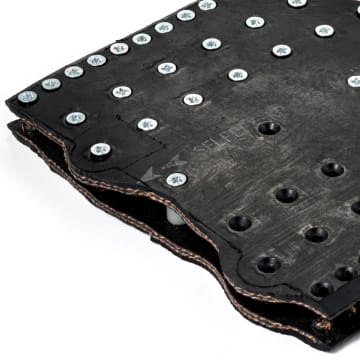

Rubber Splice KR127-ARKR127-AR7-19 mm1250 N/mm125 N/mm350-500 mmEP125015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

103 kg

68×68×28 Cm

37x31x9 cm

Rubber Splice KR180-ARKR180-AR7-20,5 mm1800 N/mm180 N/mm400-800 mmEP180015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

106 kg

68×68×28 Cm

37x31x9 cm

Rubber Splice KR185-ARKR185-AR7-19 mm1800 N/mm180 N/mm 500-800 mm EP180015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

106 kg

68×68×28 Cm

37x31x9 cm

Rubber Splice KR200-ARKR200-AR7-19 mm2000 N/mm200 N/mm 500-1000 mm EP200015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

109 kg

68×68×28 Cm

37x31x9 cm

Rubber Splice KR205-ARKR205-AR7-17,5 mm2000 N/mm200 N/mm650-1000 mmEP200015 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

109 kg

68×68×28 Cm

37x31x9 cm

Rubber Splice KR4090-1000KR4090-10006-12 mm400 N/mm40 N/mm200 mmEP250/2, 3+1.5, EP315/2 3+1.5, EP400/3 3+1.5, EP400/3 3+115 m Upper Part
15 m Bottom Part
Screws
Spacers
PZ Bits

-

-

-
