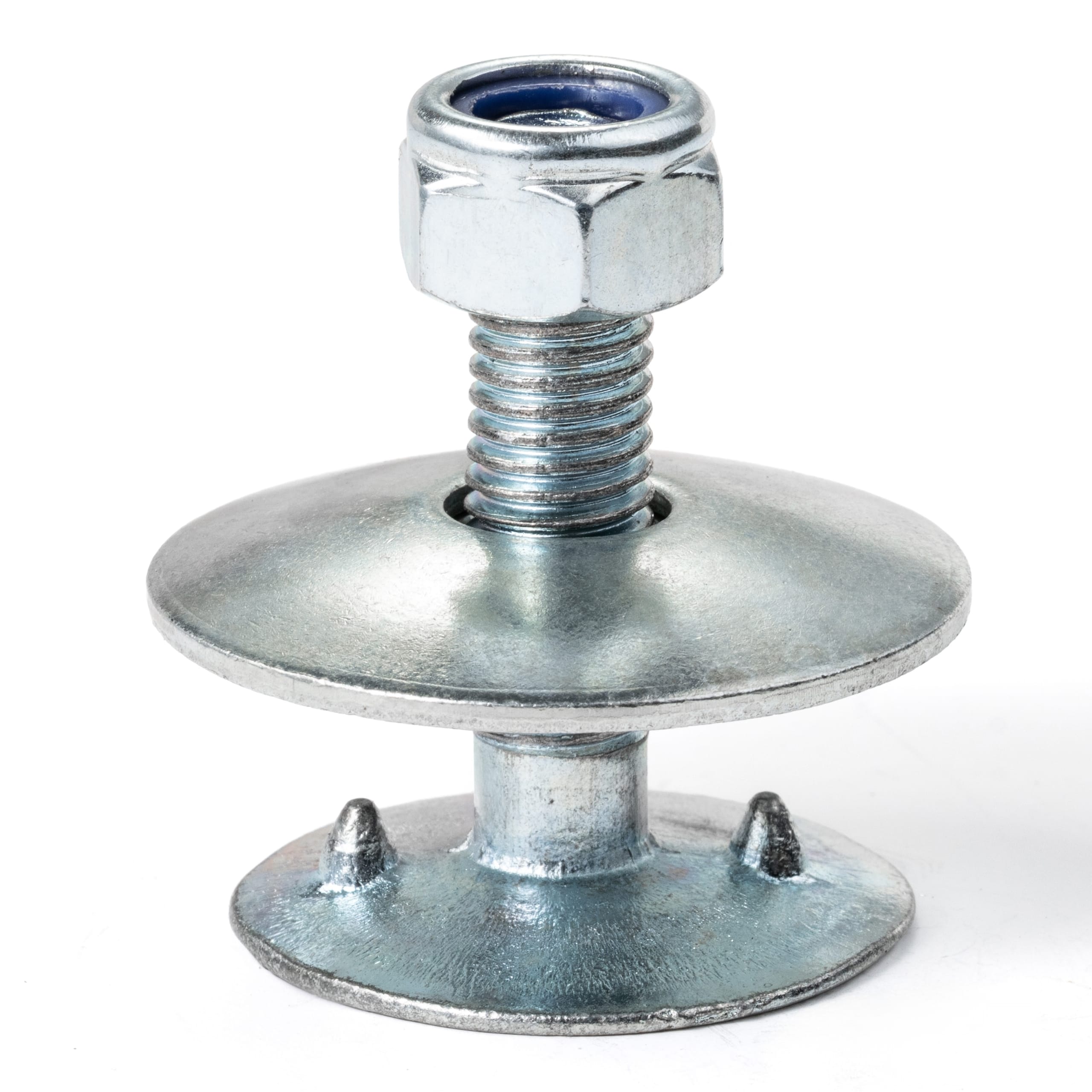

Elevator Bucket Fasteners

icon 01

By their special design they fastens the elevator buckets to the elevators strongly.

Features and Benefits:

  • Steel elevator bucket fasteners are manufactured in DIN 15237 standards.
  • Strong and long lasting.
  • Silver or gold color plated.

Options:

  • Can be shipped with nylon nut and with flat or bowl washer.
  • Various bolt sizes available.

Packaging:

  • Shipped in carton boxes. Packaging as follows; KK06, KK08, KK16 and KK18 500 pcs/box, the other elevator buckets are shipped as 200 pcs/box.
  • Elevator bucket fasteners are shipped as demounted in plastic bags.

Applications:

  • Used in vertical elevators to fasten the buckets to the elevators.
Elevator Bucket Fasteners
Elevator Bucket Fasteners Selection Chart
FASTENER CODE BOLT SIZES HEAD DIAMETER
KK06 (DIN15237) M6x30 – 40 mm 18.5 Ø
KK08 (DIN15237) M8x30 – 40 – 50 mm 30 Ø
KK10 (DIN15237) M10x40 – 50 mm 30 Ø
KK10B (DIN15237) M10x40 – 50 mm 34 Ø
KK12 (DIN 15237) M12x40 – 40 – 60 mm 34 Ø
KK16 M8x30 – 40 – 50 mm 28 Ø
KK18 (Wıth Nylon Nut) M8x30 – 40 – 50 mm 28 Ø
KK38 3/8″x40 – 50 mm 32 Ø
KK39 (Wıth Nylon Nut) M10x40 – 50 mm 32 Ø
