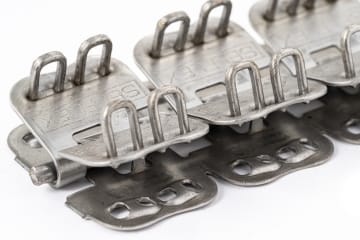

Hinged And Stapled Fastener

icon 01

With pre-inserted staples and a one-piece strip design, Selflex Hinged and Stapled Fasteners makes splicing quick and easy.

Features and Benefits:

  • Strong and impact-resistant splice.
  • Abrasion resistant splice.
  • The front edge of the fastener is beveled to allow it to interface smoothly with conveyor components.
  • Faster installation compared to vulcanisation method

Installation Options:

  • The installation of MR01 and MR02 can be done with the installation tools MA-MR12-100 , MA-MR12-200, MA-MR12-400, MA-MR12-1000.
  • The installation of MR03 can be done with the installation tool MA-MR03-150.

Options:

  • Available in sizes 60cm, 80cm, 100cm. Can be manufactured in special sizes as per order.
  • Available in steel, stainless steel 316Q.

Packaging:

  • Fasteners are shipped inside carton boxes as 5 sets/box. Connecting pins are included in the boxes.

Applications:

  • Package and baggage handling, cased goods, parts, food and agricultural products.
  • Belts from 1,5 – 6,5 mm (1/16” – 1/4”) thick, with mechanical fastener ratings up to 40 kN/m and minimum pulley diameters 50 mm.
Hinged And Stapled Fastener
Hinged And Stapled Fastener Selection Chart
FASTENER CODE MIN. PULLEY DIAMETER TENSION RANGE SUITABLE BELT THICKNESS CONNECTING PIN DIAMETER

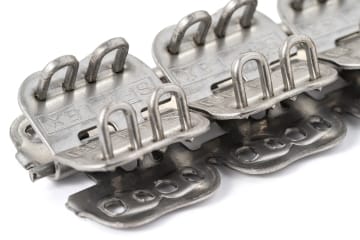

MR01 50mm – 2″ 17 kN/m 1.5 – 3.2 – mm *** 1/16 – 1/18″ 2.4 mm – 0.080″

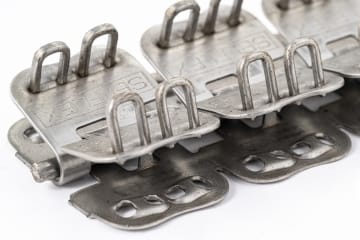

MR02 70mm – 3″ 28 kN/m 3.2 – 5.5 mm *** 1/8 – 7/32″ 3.4 mm – 0.141″

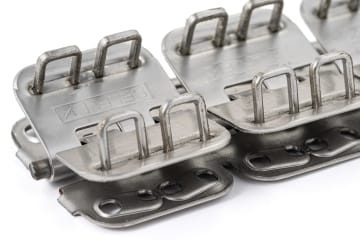

MR03 100mm – 4″ 40 kN/m 4.5 – 6.5 mm *** 3/16 – 1/4″ 3.6 mm – 0.14″
