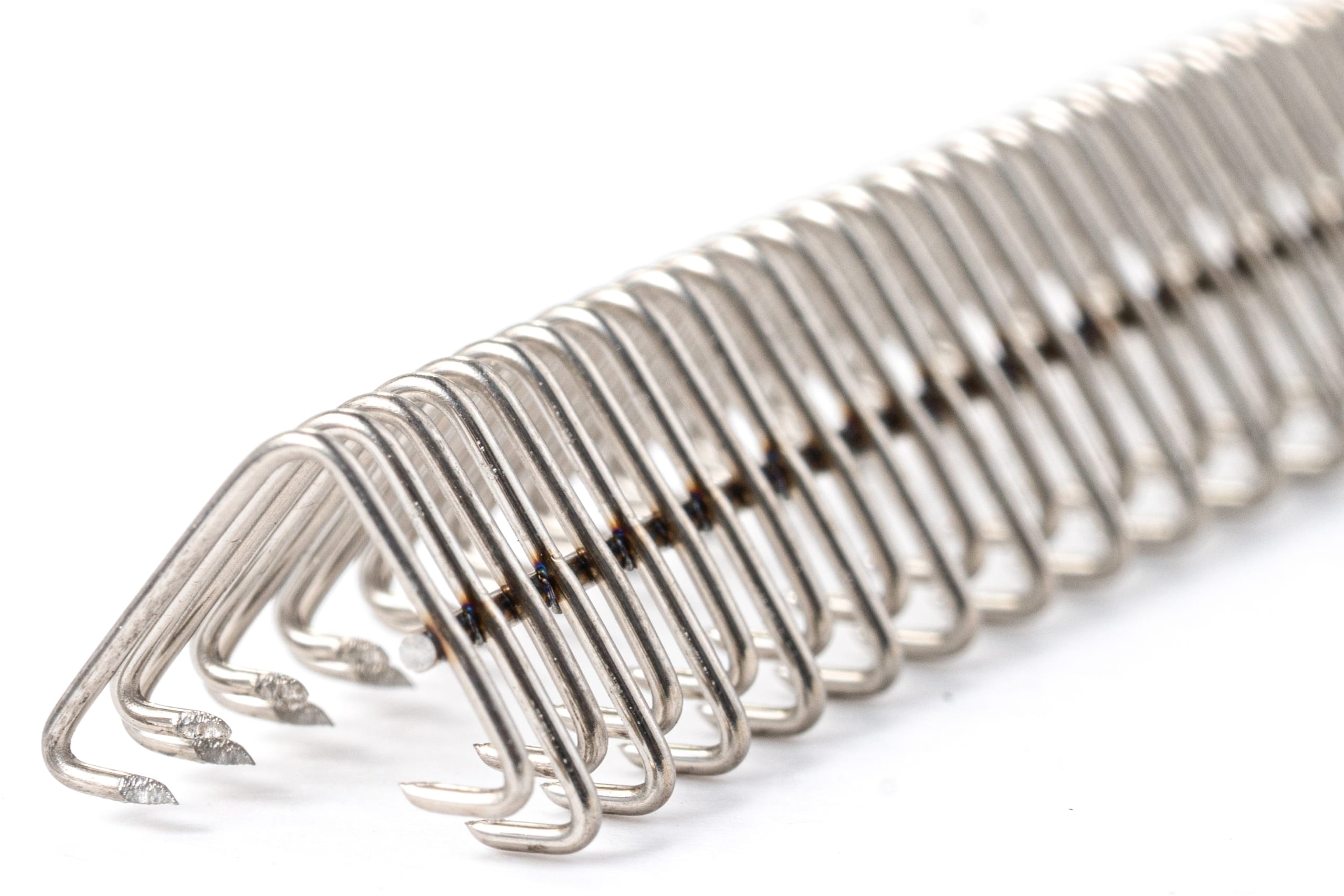

Wire Hooks

icon 01
Features and Benefits:

  • Stainless steel material.
  • Quick, economical installation.
  • Low-profile fastener.
  • Double-staggered-grip pattern that doesn’t degrade the integrity of the belt carcass.
  • Operates quietly and interfaces seamlessly with conveyor components.
  • Faster installation compared to vulcanisation method

Installation Options:

  • MA01-75 Roller Lacer–Lightweight, portable installation tools which gently and precisely roll the hooks into the belt for a low-profile splice. The length of the tool is 75cms.
  • MA04-20 Vise Lacer – Works with a vise. Length of the tool is 20cms.

Options:

  • Wide variety of wire diameters, leg and point lengths.

Packaging:

  • Fasteners are shipped inside carton boxes as 5 sets/box. Connecting pins are included in the boxes.

Applications:

  • Depending on their size wire hooks can be used with laundry belts, ligth-duty PVC belts, filter cloth, filter belts, heavy-duty PVC belts, rubber conveyor belts, heavy-duty conveyor belts.
  • For belts up to 10 mm (25/64”) thick and minimum pulley diameters 24mm.
Wire Hooks

Wire Hooks Selection Chart
FASTENER CODE MATERIAL LENGTH WIRE DIAMETER SUITABLE BELT THICKNESS APPLICATIONS
TR00x05 316Q Stainless Steel 5 cm 0.6 mm – 0.025″ 0.5 – 2.2 mm *** 1/48 – 3/32″ Laundry Belts
TR00x10 316Q Stainless Steel 10 cm 0.6 mm – 0.025″ 0.5 – 2.2 mm *** 1/48 – 3/32″ Laundry Belts
TR01-Y 304Q Stainless Steel 30 cm 1.0 mm – 0.040″ 1.5 – 3.0 mm *** 1/16 – 1/8″ PVC / Thin Belts / Food Industry
TR01-YU 316Q Stainless Steel 30 cm 1.0 mm – 0.040″ 1.5 – 3.0 mm *** 1/16 – 1/8″ PVC / Thin Belts / Food Industry
TR01-D 316Q Stainless Steel 30 cm 0.7 x 0.9 mm – 0.028″ x 0.035″ 1.5 – 2.5 mm *** 1/24 – 3/32″ PVC / Thin Belts / Food Industry / Laundry Belts
TR01-DU 316Q Stainless Steel 30 cm 0.8 x 1.0 mm – 0.032″ x 0.040″ 1.0 – 2.5 mm *** 1/24 – 3/32″ PVC / Thin Belts / Food Industry

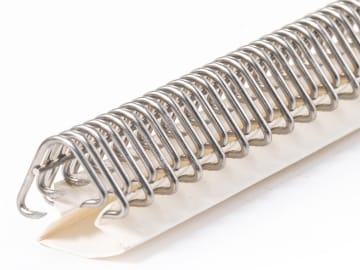

TR02-Y 304Q Stainless Steel 30 cm 1.4 mm – 0.054″ 3.0 – 4.0 mm *** 1/8 – 5/32″ Filter Cloth/Filter Belts

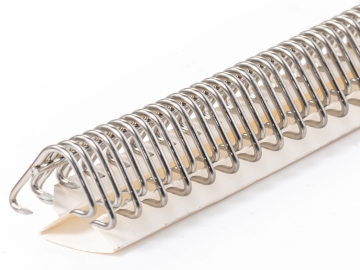

TR03-Y 304Q Stainless Steel 30 cm 1.4 mm – 0.054″ 4.0 – 5.5 mm *** 5/32 – 7/32″ Heavy Industry Belts / PVC

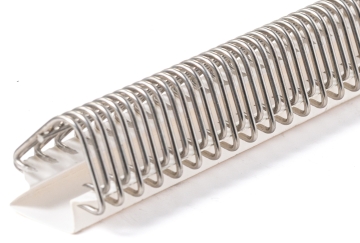

TR04-Y 304Q Stainless Steel 30 cm 1.4 mm – 0.054″ 5.0 – 6.5 mm *** 1/5 – 1/4″ Rubber Conveyor Belts

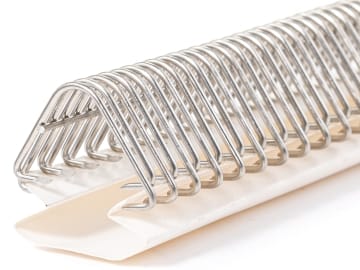

TR05-Y 304Q Stainless Steel 30 cm 1.4 mm – 0.054″ 6.0 – 8.0 mm *** 15/64 – 5/16″ Heavy-Duty Belts/Rubber Belts

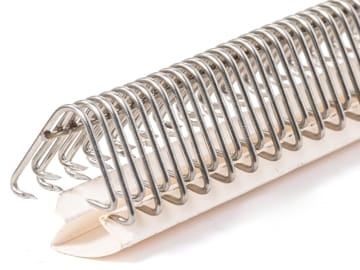

TR06-Y 304Q Stainless Steel 30 cm 1.4 mm – 0.054″ 8.0 – 10.0 mm *** 5/16 – 3/8″ Heavy-Duty Belts/Rubber Belts
