Belt Lacing

 icon 01

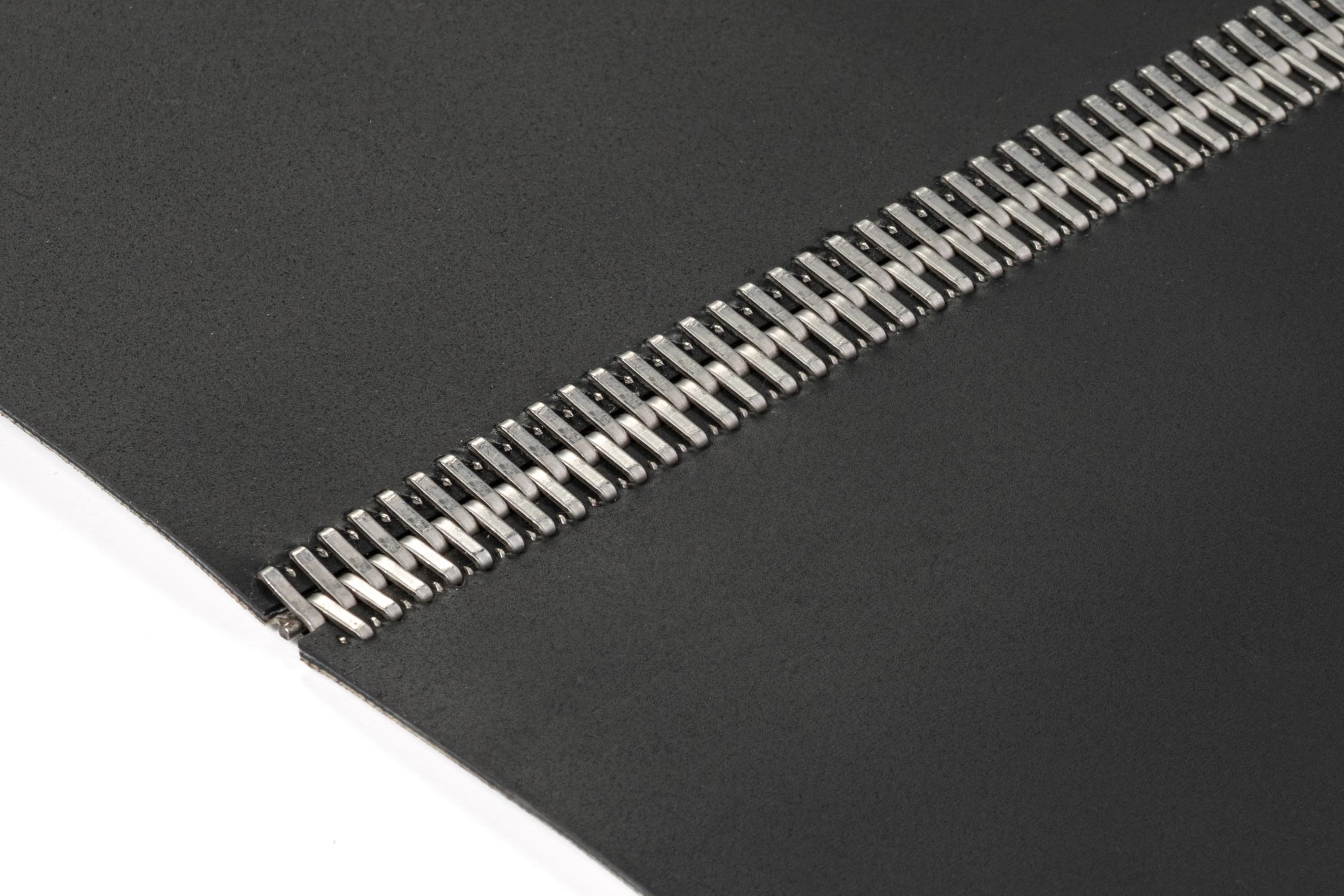

For systems with pulleys as small as 1” (25 mm) diameter, Selflex Lacing System offers an economical, low-profile splice.
Features and Benefits:

  • One-piece design provide uniform tension across belt width.
  • Engineered to prevent pieces from working loose from belt.
  • Faster installation compared to vulcanisation method

Installation Options:

  • MA01-75 or MA01-120 Roller Lacer–Lightweight, portable installation tools which gently and precisely roll the hooks into the belt for a low-profile splice.
  • The length of the tools are 75cms an 120cms.
  • MA04-20 Vise Lacer – Works with a vise. Length of the tool is 20cms.
  • SR series No:1 and No:7 fasteners can be installed with MA04-20 vise lacer or with MA01-75, MA01-120 roller lacers. The other sizes of SR series can be installed with just a hammer.

Options:

  • Available in steel or stainless steel.
  • Continuous lengths to fit any belt width. Can be manufactured in special sizes.

Packaging:

  • Fasteners are shipped inside carton boxes as 5 sets/box. Connecting pins are included in the boxes.

Applications:

  • Conveyor and transmission belts, as well as sanitary operations.
  • Belts up to 9,5 mm thick and minimum pulley diameters up to 300 mm.
Belt Lacing

Belt Lacing Selection Chart
FASTENER CODE MATERIAL NO LENGTH MIN. PULLEY DIAMETER TENSION RANGE SUITABLE BELT THICKNESS
SR01-G-300 Galvanised Steel 1 30 cm 25 mm 45 1,5 – 2,5 mm

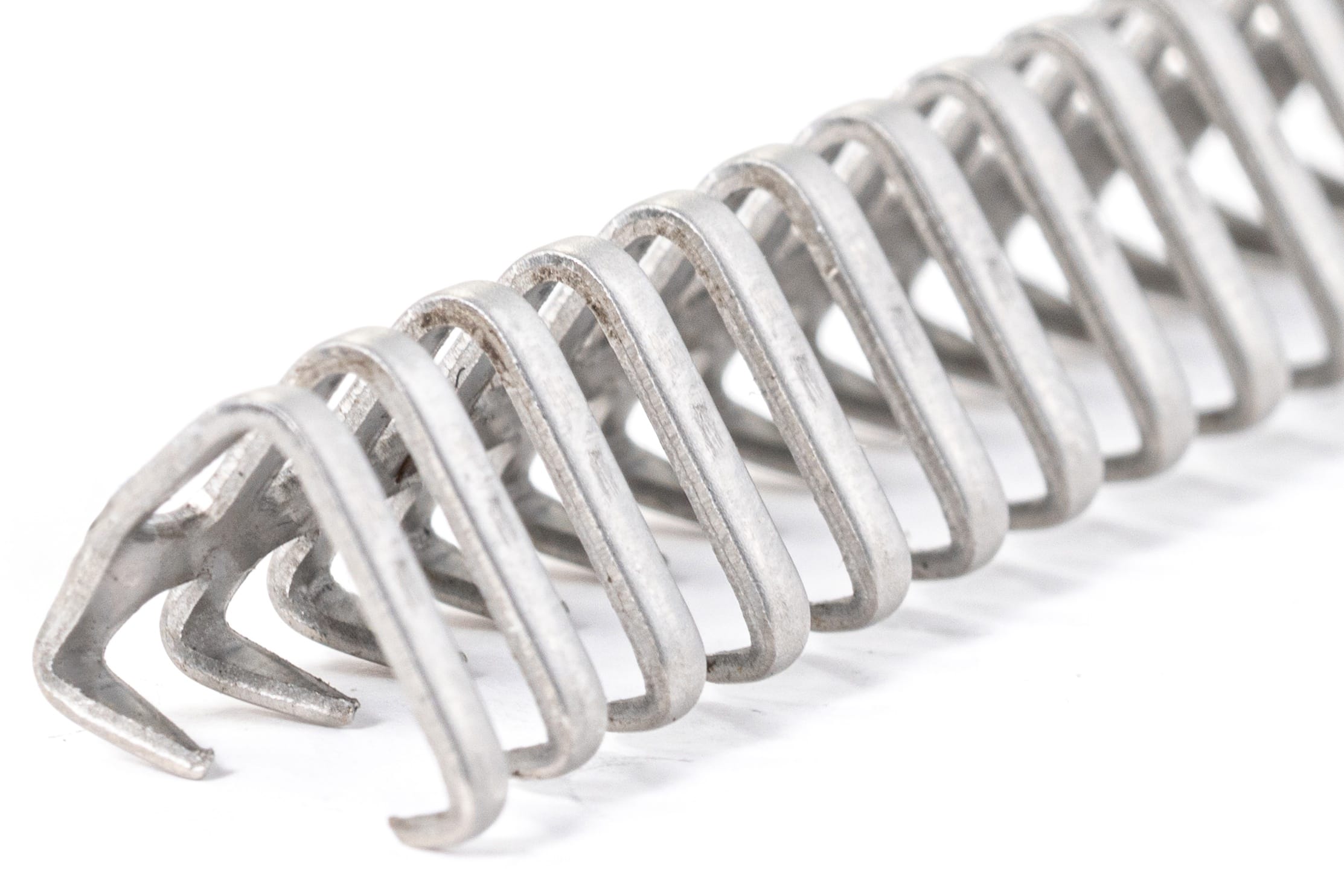

SR01-SS-300 Stainless Steel 1 30 cm 25 mm 45 1,5 – 2,5 mm
SR01-G-600 Galvanised Steel 1 60 cm 25 mm 45 1,5 – 2,5 mm
SR01-G-800 Galvanised Steel 1 80 cm 25 mm 45 1,5 – 2,5 mm
SR01-G-1000 Galvanised Steel 1 100 cm 25 mm 45 1,5 – 2,5 mm
SR01-SS-1000 Stainless Steel 1 100 cm 25 mm 45 1,5 – 2,5 mm
SR07-G-300 Galvanised Steel 7 30 cm 35 mm 50 2,5 – 3,2 mm
SR07-SS-300 Stainless Steel 7 30 cm 35 mm 50 2,5 – 3,2 mm
SR07-G-600 Galvanised Steel 7 60 cm 35 mm 50 2,5 – 3,2 mm
SR07-G-800 Galvanised Steel 7 80 cm 35 mm 50 2,5 – 3,2 mm
SR07-G-1000 Galvanised Steel 7 100 cm 35 mm 50 2,5 – 3,2 mm
SR07-SS-1000 Stainless Steel 7 100 cm 35 mm 50 2,5 – 3,2 mm
SR15-R-300 Steel 15 30 cm 100 mm 65 3,2 – 4,5 mm
SR15-R-600 Steel 15 60 cm 100 mm 65 3,2 – 4,5 mm
SR15-R-800 Steel 15 80 cm 100 mm 65 3,2 – 4,5 mm
SR25-R-300 Steel 25 30 cm 150 mm 100 4,5 – 5,6 mm
SR25-R-600 Steel 25 60 cm 150 mm 100 4,5 – 5,6 mm
SR25-R-800 Steel 25 80 cm 100 mm 100 4,5 – 5,6 mm
SR27-R-300 Steel 27 30 cm 200 mm 100 5,6 – 7,0 mm
SR27-R-600 Steel 27 60 cm 200 mm 100 5,6 – 7,0 mm
SR27-R-800 Steel 27 80 cm 200 mm 100 5,6 – 7,0 mm

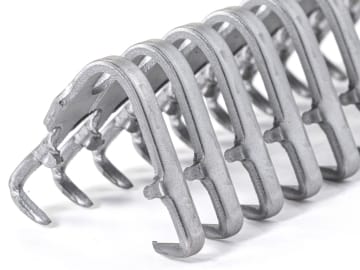

SR35-R-300 Steel 35 30 cm 250 mm 150 7,0 – 8,0 mm
SR35-R-600 Steel 35 60 cm 250 mm 150 7,0 – 8,0 mm
SR35-R-800 Steel 35 80 cm 250 mm 150 7,0 – 8,0 mm

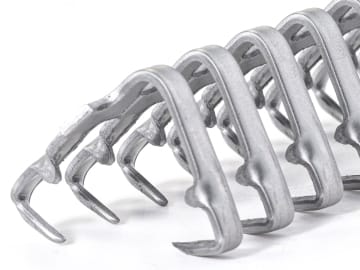

SR45-R-300 Steel 45 30 cm 300 mm 165 8,0 – 9,5 mm
SR45-R-600 Steel 45 60 cm 300 mm 165 8,0 – 9,5 mm
SR45-R-800 Steel 45 80 cm 300 mm 165 8,0 – 9,5 mm
