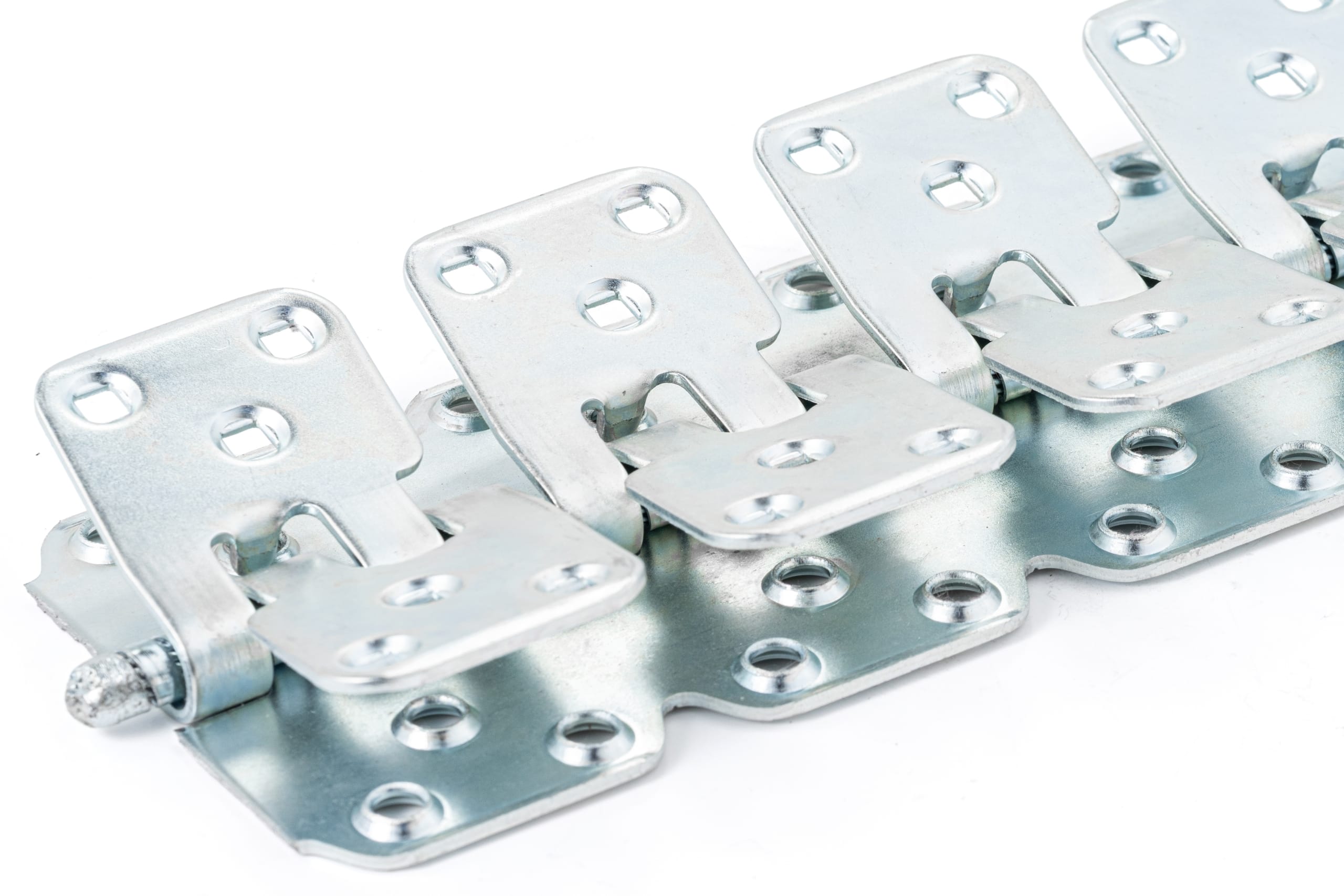

Hinged Fastener

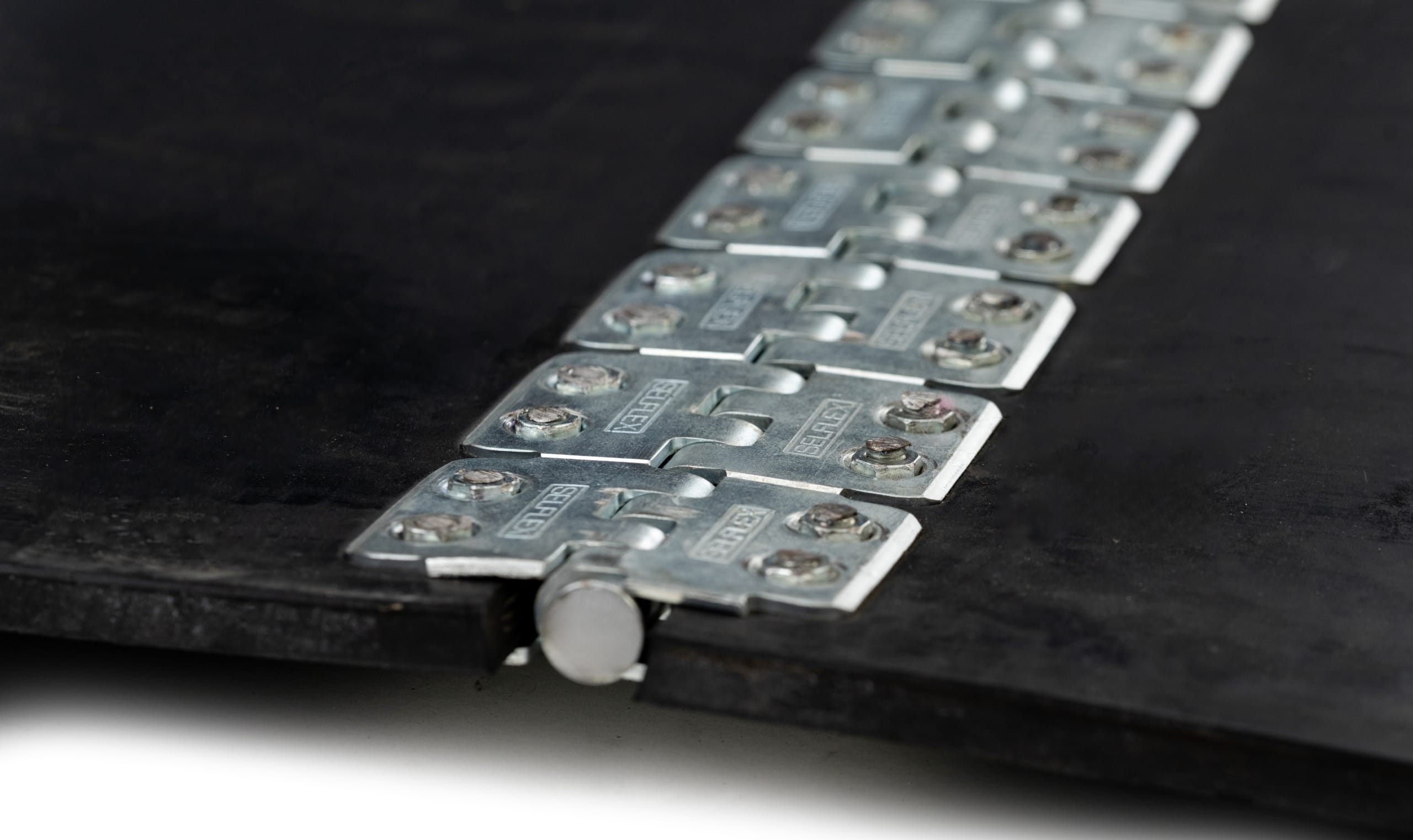

Ideal for rubber plied and PVC solid woven belting, the Selflex Rivet Hinged Fasteners delivers the performance, long life and easy installation that maximize belt availability.

Features and Benefits

  • Faster installation compared to vulcanisation process
  • Maximum holding ability via patented steel bolts without damage to belt carcass fibers.
  • Built-in viewport for easy fastener positioning.
  • Easy joint separation by simply removing the hinge pin.
  • Easy installation with our patented design bolt.
  • Suitable for working on small diameter rolls.

Application

Underground and surface mining, coal and hard rock, construction machines, cement and asphalt plants, pulp and paper, sand and gravel plants, packaging, marble and other demanding applications.

Hinged Fastener Selection Chart

Image Technical DetailsPackaging
Fastener CodeTension RangeBelt ThicknessMin. Pulley DiameterHinge Pin DiameterMaterial Options Box Content Length Box Weight Box Dimensions
Hinged Fastener MR-04MR0440 kN/m5 – 10 mm125 mm6.7 mmSteel,
316 Stainless Steel
5 Sets(10 Stripes) Fasteners
+Hinge Pins
+Bolts&Nuts or Rivets

500 mm

600 mm

650 mm

800 mm

1000 mm

1200 mm

5 kg

6 kg

6.5 kg

8 kg

10 kg

12 kg

55x35x21 cm

65x35x21 cm

85x35x21 cm

85x35x21 cm

105x35x21 cm

125x35x21 cm

Hinged Fastener MR-05MR0580 kN/m6-11 mm175 mm8.0 mmSteel,
316 Stainless Steel
5 Sets(10 Stripes) Fasteners
+Hinge Pins
+Bolts&Nuts or Rivets

500 mm

600 mm

650 mm

800 mm

1000 mm

1200 mm

8.1 kg

9.7 kg

10.5 kg

13 kg

16.2 kg

19.4 kg

55x35x21 cm

65x35x21 cm

85x35x21 cm

85x35x21 cm

105x35x21 cm

125x35x21 cm

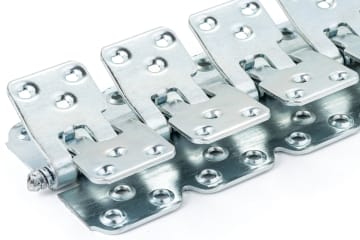

Hinged Fastener MR06MR06125 kN/m8 – 15 mm250 mm10 mmSteel,
316 Stainless Steel
5 Sets(10 Stripes) Fasteners
+Hinge Pins
+Bolts&Nuts or Rivets

500 mm

600 mm

650 mm

800 mm

1000 mm

1200 mm

10.7 kg

12.8 kg

13.9 kg

17 kg

21.3 kg

26.6 kg

55x35x21 cm

65x35x21 cm

85x35x21 cm

85x35x21 cm

105x35x21 cm

125x35x21 cm

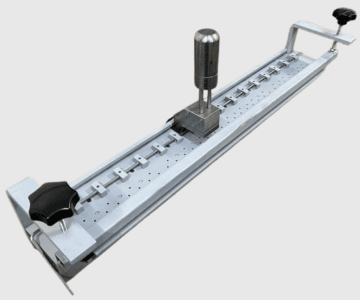

Installation Tools

Hinged Fastener Installation Video
