Features and Benefits

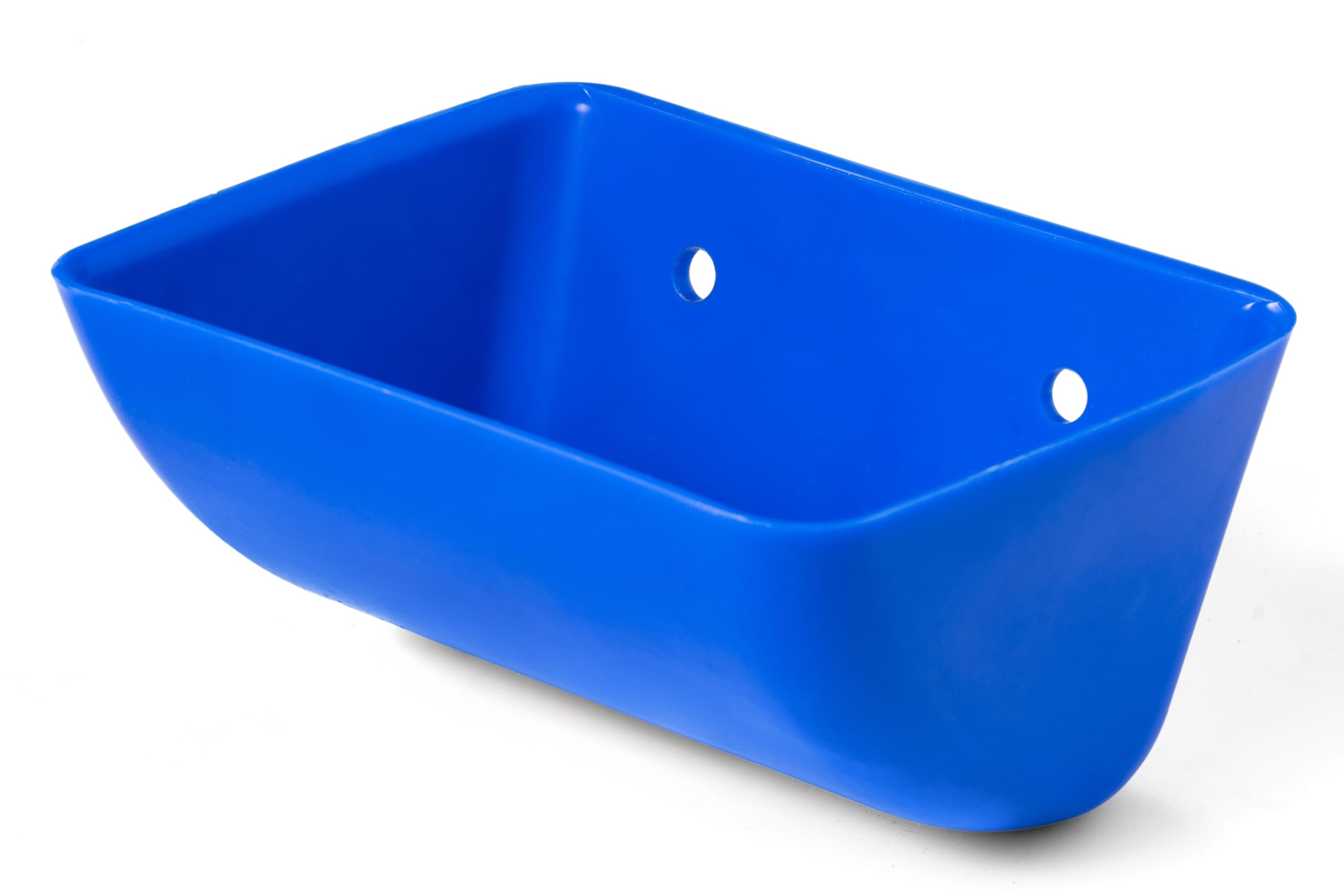

- Plastic elevator buckets are manufactured from polypropylene material.
- Strong and long lasting.
- Flat washers are used with plastic elevator buckets
Options
- The distance between the bolt holes can be changed.
- There are different sizes as shown in the chart.
- Can be shipped with nylon nuts.
Packaging
- Can be shipped with carton boxes or in sacks.
Applications
- Elevator buckets are used over vertical elevators.
Plastic Elevator Buckets Selection Chart
| Technical Details |
| Product Code | A- Width | B- Length | C- Depth | D-Thickness | E- Distance Between Bolt Holes | F- Number Of Holes | G Ø- Size Of Bolts | Carrying Capacity |
|---|
| PK-100 | 100 mm | 90 mm | 55 mm | 4 mm | 50 mm | 2 | 8 mm – 5/16″ | 0,218 kg / 0,242 lt |
| PK-120 | 120 mm | 105 mm | 65 mm | 4 mm | 60 mm | 2 | 8 mm – 5/16″ | 0,344 kg / 0,382 lt |
| PK-140 | 140 mm | 120 mm | 75 mm | 4 mm | 70 mm | 2 | 8 mm – 5/16″ | 0,522 kg / 0,581 lt |
| PK-160 | 160 mm | 130 mm | 85 mm | 5 mm | 80 mm | 2 | 8 mm – 5/16″ | 0,698 kg / 0,775 lt |
| PK-180 | 180 mm | 140 mm | 96 mm | 5 mm | 90 mm | 2 | 8 mm – 5/16″ | 0,906 kg / 1,006 lt |
| PK-200 | 200 mm | 150 mm | 107 mm | 5 mm | 100 mm | 2 | 8 mm – 5/16″ | 1,432 kg / 1,588 lt |
| PK-220 | 220 mm | 162 mm | 118 mm | 6 mm | 110 mm | 2 | 8 mm – 5/16″ | 1,892 kg / 2,101 lt |
| PK-240 | 240 mm | 175 mm | 130 mm | 6 mm | 120 mm | 2 | 8 mm – 5/16″ | 2,252 kg / 2,505 lt |
| PK-260 | 260 mm | 180 mm | 140 mm | 6 mm | 160 mm | 3 | 8 mm – 5/16″ | 3,088 kg / 3,455 lt |
| PK-280 | 280 mm | 213 mm | 170mm | 7 mm | 180 mm | 3 | 10 mm – 3/8″ | 3,651 kg / 4,221 lt |
| PK-300 | 300 mm | 215 mm | 155 mm | 7 mm | 180 mm | 3 | 10 mm – 3/8″ | 3,855 kg / 5,022 lt |
| PK-320 | 320 mm | 220 mm | 150 mm | 7 mm | 200 mm | 3 | 10 mm – 3/8″ | 4,474 kg / 6,251 lt |
| PK-340 | 340 mm | 223 mm | 150 mm | 8,5 mm | 216 mm | 4 | 8 mm – 5/16″ | 4,656 kg / 6,432 lt |
| PK-400 | 400 mm | 225 mm | 152 mm | 9,5 mm | 260 mm | 5 | 8 mm – 5/16″ | 7,796 kg / 5,545 lt |
